25mm x ray lead glass for ct window radiology as medical examination protection
Quick Detail:
· Size from 200* 300mm to 1200* 2400mm
· Customized Size accepted
· Thickness 8/ 10/ 12/ 15/ 18/ 20/ 23/ 25mm
· Lead equivalent 1.7/ 2.1/ 2.6/ 3.3/ 3.96/ 4.4/ 5.8/ 6.71mmpb
· Stainless Steel and Aluminium frame available
Description:
We can offer different thickness and customized size of lead glass. It is widely and mainly used for
Xray CT Installation Projects.

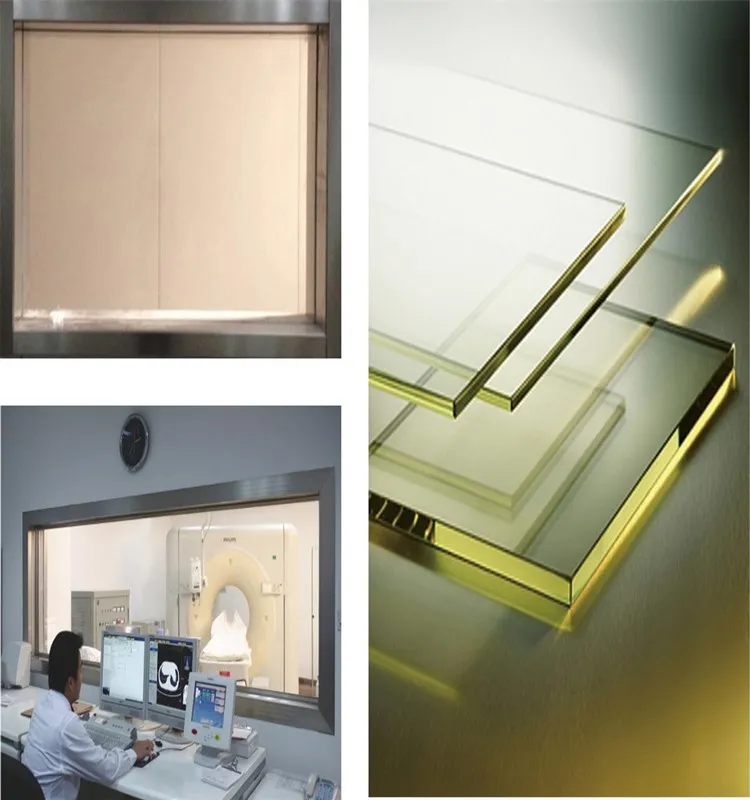

To provide viewing of the patient in the x- ray room while providing protection to the operator, lead glass
viewing windows can be furnished in the barrier.
Specification:
| |
8mm |
10mm |
12mm |
15mm |
18mm |
20mm |
25mm |
| ( 1.7mmpb) |
( 2.1mmpb) |
( 2.6mmpb) |
( 3.3 mmpb) |
( 3.96 mmpb) |
( 4.4 mmpb) |
( 6.71 mmpb) |
| 200* 300 |
200* 300* 8 |
200* 300* 10 |
200* 300* 12 |
200* 300* 15 |
200* 300* 18 |
200* 300* 20 |
- |
| 300* 400 |
300* 400* 8 |
300* 400* 10 |
300* 400* 12 |
300* 400* 15 |
300* 400* 18 |
300* 400* 20 |
- |
| 400* 600 |
400* 600* 8 |
400* 600* 10 |
400* 600* 12 |
400* 600* 15 |
400* 600* 18 |
400* 600* 20 |
- |
| 600* 800 |
600* 800* 8 |
600* 800* 10 |
600* 800* 12 |
600* 800* 15 |
600* 800* 18 |
600* 800* 20 |
- |
| 600* 900 |
600* 900* 8 |
600* 900* 10 |
600* 900* 12 |
600* 900* 15 |
600* 900* 18 |
600* 900* 20 |
- |
| 1000* 800 |
1000* 800* 8 |
1000* 800* 10 |
1000* 800* 12 |
1000* 800* 15 |
1000* 800* 18 |
1000* 800* 20 |
1000* 800* 25 |
| 1200* 800 |
1200* 800* 8 |
1200* 800* 10 |
1200* 800* 12 |
1200* 800* 15 |
1200* 800* 18 |
1200* 800* 20 |
1200* 800* 25 |
| 1200* 900 |
1200* 900* 8 |
1200* 900* 10 |
1200* 900* 12 |
1200* 900* 15 |
1200* 900* 18 |
1200* 900* 20 |
1200* 900* 25 |
| 1200* 1000 |
1200* 1000* 8 |
1200* 1000* 10 |
1200* 1000* 12 |
1200* 1000* 15 |
1200* 1000* 18 |
1200* 1000* 20 |
1200* 1000* 25 |
| 1200* 1200 |
- |
1200* 1200* 10 |
1200* 1200* 12 |
1200* 1200* 15 |
1200* 1200* 18 |
1200* 1200* 20 |
1200* 1200* 25 |
| 1500* 900 |
- |
1500* 900* 10 |
1500* 900* 12 |
1500* 900* 15 |
1500* 900* 18 |
1500* 900* 20 |
1500* 900* 25 |
| 1500* 1000 |
- |
1500* 1000* 10 |
1500* 1000* 12 |
1500* 1000* 15 |
1500* 1000* 18 |
1500* 1000* 20 |
1500* 1000* 25 |
| 1500* 1200 |
- |
1500* 1200* 10 |
1500* 1200* 12 |
1500* 1200* 15 |
1500* 1200* 18 |
1500* 1200* 20 |
1500* 1200* 25 |
| 1600* 1000 |
- |
1600* 1000* 10 |
1600* 1000* 12 |
1600* 1000* 15 |
1600* 1000* 18 |
1600* 1000* 20 |
1600* 1000* 25 |
| 1600* 1200 |
- |
1600* 1200* 10 |
1600* 1200* 12 |
1600* 1200* 15 |
1600* 1200* 18 |
1600* 1200* 20 |
1600* 1200* 25 |
| 1800* 1000 |
- |
1800* 1000* 10 |
1800* 1000* 12 |
1800* 1000* 15 |
1800* 1000* 18 |
1800* 1000* 20 |
1800* 1000* 25 |
| 1800* 1200 |
- |
1800* 1200* 10 |
1800* 1200* 12 |
1800* 1200* 15 |
1800* 1200* 18 |
1800* 1200* 20 |
1800* 1200* 25 |
| 2000* 1000 |
- |
2000* 1000* 10 |
2000* 1000* 12 |
2000* 1000* 15 |
2000* 1000* 18 |
2000* 1000* 20 |
2000* 1000* 25 |
| 2000* 1200 |
- |
2000* 1200* 10 |
2000* 1200* 12 |
2000* 1200* 15 |
2000* 1200* 18 |
2000* 1200* 20 |
2000* 1200* 25 |
| 2400* 1200 |
- |
2400* 1200* 10 |
2400* 1200* 12 |
2400* 1200* 15 |
2400* 1200* 18 |
2400* 1200* 20 |
2400* 1200* 25 |
Notices:
1. Lead glass is a brittle material with a large proportion, so it must be handled gently when it is moved.
2. When installation, the glass must be mismatched with the wall protection material to prevent radiation leakage at the joint.
3. As lead glass materials are rich in lead and barium, lead glass is easy to be contaminated by acid and base,
and is not easy to be installed or stored in a sour or humid environment.
Application:
Lead glass is mainly used in the manufacturing of optical instruments, art vessels, etc.
Lead glass is mainly used for diagnostic X- ray machine rooms, CT, ECT, PET, ct- pet and other machine rooms,
FAQ:
Q1. Can I have a sample order for lead glass?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Usually 5-7 working days.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by Air and Sea.
Q5. How to proceed an order for lead glass?
A: Firstly let us know your requirements or size, thickenss and also quantity.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms.
Fourthly We arrange the production.
