0.105mm Thickness Electrolytic Copper Foil Shielding EMC EMI Shielding For MRI Room
Description:
Shielding copper foil is easier to make a Faraday cage, EMI room.
Features:
1. Shielding ED copper foil or RA copper foil
2. Thickness 0.009--3mm, width 10-1380mm
3. Easily and quickly modified on site
4. High performance, vertically-supported modular enclosure
5. Copper serves as an eddy current shield for EMI protection
6. Generally 200 or 500kg/roll
7. Reinforced wall design
Specification:
ED copper foil
| Quality Items | General Technical Terms |
| Normal thickness | 2oz | 3oz | 4oz | 5oz |
| 0.07mm | 0.105mm | 0.14mm | 0.175mm |
| Area Weight(g/m2) | 560-610 | 838-960 | 1100-1280 | 1380-1600 |
| Tensile strength | Room temperature | ≥28 | ≥28 | ≥28 | ≥28 |
| (kg/mm2) |
| Elongation | Room temperature | ≥10 | ≥10 | ≥10 | ≥10 |
| % |
| Leakage points(points/m2) | No |
| High-temperature Anti-Oxidization Performance(180℃/h) | No Oxidization |
| Width Tolerance | (+2.0 ,-2.0) |
Specification:
RA copper foil
| Thickness | 0.1mm /0.15mm | 0.15mm-0.5mm |
| Width | 150mm/300mm/600mm | 600mm/800mm |
Application Of copper foil

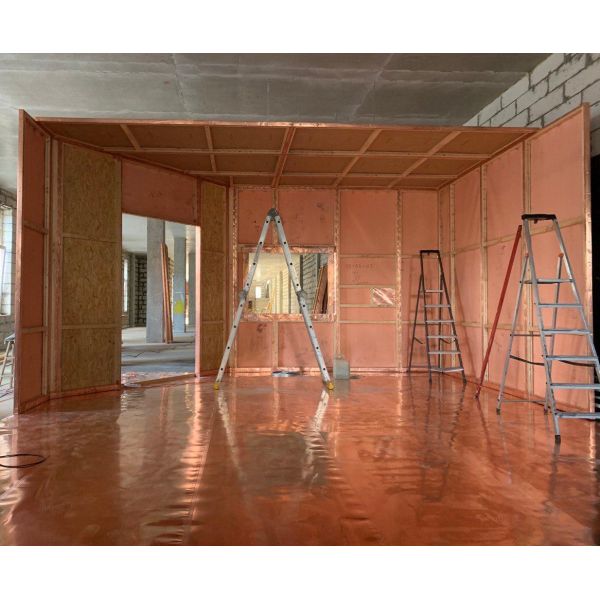

As we can see in the picture, copper foil can be widely used in MRI RF shielding room installation.
Such as ceiling, wall, and floor. It can effectively prevent the leakage of signals and noise.
Q1. How do I pay for my purchase order?
A: We can accept the following payment methods: T/T, L/C, D/A, D/P, and we also can accept Westernunion
If you want another payment please contact us.
Q2. Is there a tracking number for my item?
A: Yes, of course. We usually ship your goods by EMS, DHL, FedEx, UPS, TNT with the online track,
you can view the shipment status on the website.
Q3. How does your factory do related quality control?
A: Quality is a top priority. We attach great importance to quality control from the very beginning of manufacturing.
